Field Density Testing (Sand Cone Method) in Kelowna – Reliable Compaction Verification

Kelowna’s construction boom, pushing past 144,000 residents spread along the benches above Okanagan Lake, puts immense pressure on engineered fill. Between the silty glacio-lacustrine deposits near downtown and the coarser outwash gravels closer to the airport, compacted lift performance varies block by block. A standard Proctor curve means nothing unless it is verified in the ground. The field density test (sand cone method) remains one of the few direct, non-nuclear options accepted by Okanagan municipalities for backfill sign-off. We pair it with Proctor tests when the reference maximum dry density is in question, and with grain size analysis when you need to confirm whether the imported fill actually meets the spec before compaction even starts. The result is a defensible QA record that stands up to City of Kelowna inspection notes and geotechnical review, without the regulatory burden of a nuclear gauge.

Compaction is the cheapest insurance you can buy for a foundation—if you verify it with a direct method like the sand cone, not just a guess based on roller passes.

Method and coverage

The sand cone method delivers a physical measurement of in-place density that is particularly useful where nuclear gauges are impractical or unwanted. In Kelowna, we often see this contrast between the expansive clay-rich soils of the Upper Mission and the cleaner sands of the Rutland bench. A nuclear gauge can give a fast reading in Rutland, but in the Mission the clay matrix demands a method that doesn’t rely on moisture calibration drift. Our crews excavate the test hole precisely, capturing all material for lab-based moisture content, while the calibrated Ottawa sand fills the void to give a direct volume reading. This approach ties directly to the SPT drilling correlations required for deeper bearing capacity checks, especially on sloped lots where cut-fill transitions complicate the upper stratigraphy. The test is repeatable, traceable, and delivers percent compaction results against ASTM D698 or D1557 reference curves, which we can generate in our Okanagan-based lab within 48 hours.

Regional considerations

Kelowna sits in a moderate seismic zone (NBCC Seismic Category C), and the loose, saturated silts along the lakefront—remnants of glacial Lake Penticton—can be prone to settlement or even cyclic mobility if not compacted properly. Relying solely on observation or a few random tests leaves layers of under-compacted fill that later create differential settlement across a slab or asphalt surface. The sand cone method directly measures density at the exact elevation that will support the footing or road subgrade. For deep excavations near the lake, where groundwater is often encountered within 2 to 3 metres, poor fill compaction can also allow water migration that exacerbates erosion. We combine field density verification with in-situ permeability testing when the engineered fill doubles as a low-permeability barrier, ensuring that both density and hydraulic conductivity meet the design intent.

Technical parameters

Parameter	Typical value
Test Method Standard	ASTM D1556 / AASHTO T-191
Typical Test Depth	150–200 mm below surface
Material Types	Coarse-grained fills, select granular, minus 50 mm
Volume Measurement	Calibrated Ottawa sand (C-109 or C-778)

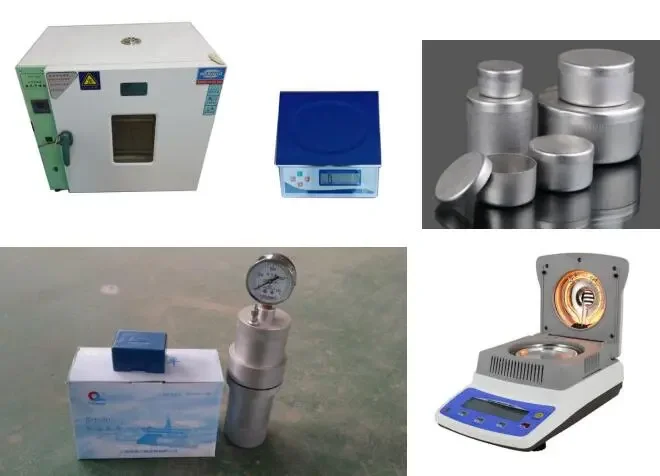

Moisture Content	Oven-dried lab determination (ASTM D2216)
Compaction Reference	ASTM D698 / D1557 Proctor curves
Reporting Units	Percent compaction, dry density, moisture content

Complementary services

Sand Cone Field Density Testing

Direct in-place density measurement using calibrated Ottawa sand per ASTM D1556. Suitable for fine- to medium-grained fills up to 50 mm particle size, with immediate pass/fail determination against Proctor reference curves.

Proctor Compaction Curves

Standard and Modified Proctor testing (ASTM D698 / D1557) in our Okanagan lab to establish the target maximum dry density and optimum moisture content for your specific fill material.

Compaction Control QA/QC Packages

Complete quality assurance documentation including test location mapping, field moisture logs, lab oven-dry results, and final percent compaction summaries formatted for City of Kelowna and consulting engineer review.

Standards that apply

ASTM D1556 – Standard Test Method for Density of Soil in Place by the Sand-Cone Method, ASTM D698 – Standard Test Methods for Laboratory Compaction (Standard Proctor), ASTM D1557 – Standard Test Methods for Laboratory Compaction (Modified Proctor), ASTM D2216 – Standard Test Methods for Laboratory Determination of Water Content, AASHTO T-191 – Density of Soil In-Place by the Sand-Cone Method, CSA A23.3 – Canadian Standards Association Concrete Structures (references to fill quality)

Common questions

How much does a sand cone field density test cost in Kelowna?

A single sand cone test with lab moisture content typically runs between CA$120 and CA$200, depending on site access and the number of tests per mobilization. Full-day QA/QC programs with multiple lifts and Proctor curves are priced on a project basis.

How many sand cone tests do I need for a typical foundation backfill?

The City of Kelowna usually requires a minimum of one test per lift per 500 square metres of compacted area, with additional tests at cut-fill transitions or around utility penetrations. Steeper lots in areas like Dilworth Mountain often warrant a tighter spacing to catch variability.

Can the sand cone method be used on coarse gravel or shot rock?

The sand cone method works best on materials with a maximum particle size of about 50 mm. For fills with larger cobbles or shot rock, we recommend a test fill with a nuclear gauge or a method specification approach, since the cone excavation volume becomes unrepresentative.

How long does it take to get results from a sand cone test?

The field portion takes 15–20 minutes per location. Moisture content requires oven-drying, so final percent compaction numbers are typically available within 24 hours. Same-day reporting is possible when we dry samples in a field lab set up on larger earthworks projects.
