Laboratory in Kelowna

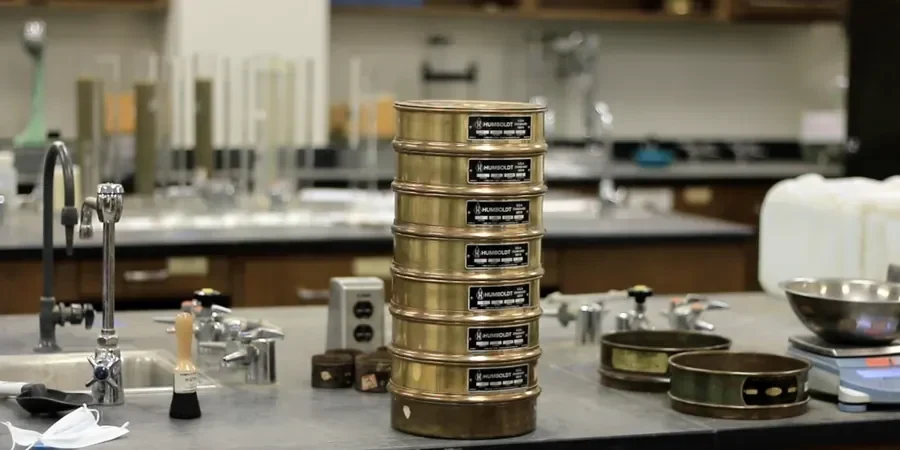

In Kelowna, laboratory soil testing converts field samples into reliable design parameters governed by Canadian standard CSA A153 and BC MoTI protocols. The region’s glaciolacustrine silts and sandy tills demand precise classification to manage moisture sensitivity and frost action. Our facility performs full particle-size distribution through grain size analysis (sieve + hydrometer), capturing both coarse and fine fractions critical for interpreting local depositional history. Combined with Atterberg limits, we establish plasticity boundaries that directly inform slope stability and shrink-swell potential in the Okanagan’s variable surficial geology.

Residential subdivisions, vineyard retaining walls, and lakeshore foundations routinely require these index tests to meet municipal permitting requirements. A complete grain size and Atterberg limits dataset supports drainage design, compaction specifications, and seismic site class determination under the National Building Code of Canada. Our lab delivers rapid turnaround for contractors and geotechnical engineers across the Central Okanagan.

Technical parameters

Parameter	Typical value
Design standard	CSA A23.3 Annex G; PTI DC-35
Bond stress in glacial till	40–120 kPa (preliminary); verified by field test
Typical anchor capacity range	200 kN to 1,200 kN (strand or bar)
Corrosion protection	Class I (double encapsulation) for permanent anchors
Proof test load	133% of design load (ASTM A416 strand)
Free length minimum	4.5 m or as required to clear failure plane
Lock-off load	70–100% of design load, depending on wall stiffness
Seismic adjustment	NBCC 2015 site class C/D; anchor load increased by 15–25%

Complementary services

Permanent Active Anchor Design

Post-tensioned strand or bar anchors for retaining walls, bridge abutments, and deep excavations in Kelowna. Includes bond length calculation in glacial till, double-corrosion protection detailing per PTI Class I, and seismic load adjustments per NBCC 2015.

Passive Anchor and Deadman Systems

Design of gravity blocks, soil nails, and tie-back walls for slope stabilization in Kelowna's residential bench developments. Includes passive wedge analysis, frost heave mitigation, and drainage integration for Okanagan silt soils.

Standards that apply

CSA A23.3-14 Annex G — Ground Anchors, PTI DC-35.1-14 — Recommendations for Prestressed Rock and Soil Anchors, ASTM A416/A416M-18 — Low-Relaxation Seven-Wire Steel Strand, NBCC 2015 — Seismic design provisions for anchor-supported structures

Common questions

How much does an active or passive anchor design cost in Kelowna?

Professional design fees for anchor systems in Kelowna typically range from CA$1,480 to CA$5,540 depending on the complexity of the site, the number of anchors, and whether pull-out testing supervision is included. A simple passive block detail for a small retaining wall sits at the lower end, while a multi-row active anchor design with corrosion protection and seismic analysis for a commercial excavation will be at the upper end.

What is the difference between active and passive anchors?

Active anchors are post-tensioned after grouting and locked off against the structure, applying a pre-compression to the soil or wall. They are used when deformation must be controlled tightly—think of a shoring wall next to an existing Kelowna building. Passive anchors develop their force only when the soil moves and engages the tendon, so they allow some displacement. We specify passive systems for slope stabilization where small movements are acceptable.

How does Kelowna's freeze-thaw cycle affect anchor performance?

Frost penetration in Kelowna reaches about 1.2 meters in exposed areas. The upper portion of a passive anchor block or the free length of an active anchor can experience reduced bond during spring thaw when the ground is saturated. We mitigate this by setting the bond zone below the frost line and specifying a drainage system behind the wall to prevent water buildup in the active zone.

Do I need a geotechnical investigation before anchor design?

Absolutely. Anchor design without site-specific soil data is guesswork. We need at minimum a borehole or test pit to identify the stratigraphy—glacial till, silt lenses, bedrock depth—and laboratory shear strength tests on undisturbed samples. Kelowna's geology changes within a single block, so we never rely on regional maps alone.

Laboratory in Kelowna

Available services

Grain size analysis (sieve + hydrometer)

Atterberg limits
